Audio-Plane

Audio-Plane: Audio Factorization Plane Gaussian Splatting for Real-Time Talking Head Synthesis

Shuai Shen1   Wanhua Li2   Yunpeng Zhang3   Yap-Peng Tan1   Jiwen Lu4

1Nanyang Technological University   2Harvard University   3PhiGent Robotics   2Tsinghua University

[Video]



Abstract

Talking head synthesis has emerged as a prominent research topic in computer graphics and multimedia, yet most existing methods often struggle to strike a balance between generation quality and computational efficiency, particularly under real-time constraints. In this paper, we propose a novel framework that integrates Gaussian Splatting with a structured Audio Factorization Plane (Audio-Plane) to enable high-quality, audio-synchronized, and real-time talking head generation. For modeling a dynamic talking head, a 4D volume representation, which consists of three axes in 3D space and one temporal axis aligned with audio progression, is typically required. However, directly storing and processing a dense 4D grid is impractical due to the high memory and computation cost, and lack of scalability for longer durations. We address this challenge by decomposing the 4D volume representation into a set of audio-independent spatial planes and audio-dependent planes, forming a compact and interpretable representation for talking head modeling that we refer to as the Audio-Plane. This factorized design allows for efficient and fine-grained audio-aware spatial encoding, and significantly enhances the model's ability to capture complex lip dynamics driven by speech signals. To further improve region-specific motion modeling, we introduce an audio-guided saliency splatting mechanism based on region-aware modulation, which adaptively emphasizes highly dynamic regions such as the mouth area. This allows the model to focus its learning capacity on where it matters most for accurate speech-driven animation. Extensive experiments on both the self-driven and the cross-driven settings demonstrate that our method achieves state-of-the-art visual quality, precise audio-lip synchronization, and real-time performance, outperforming prior approaches across both 2D- and 3D-based paradigms.




Audio-Plane

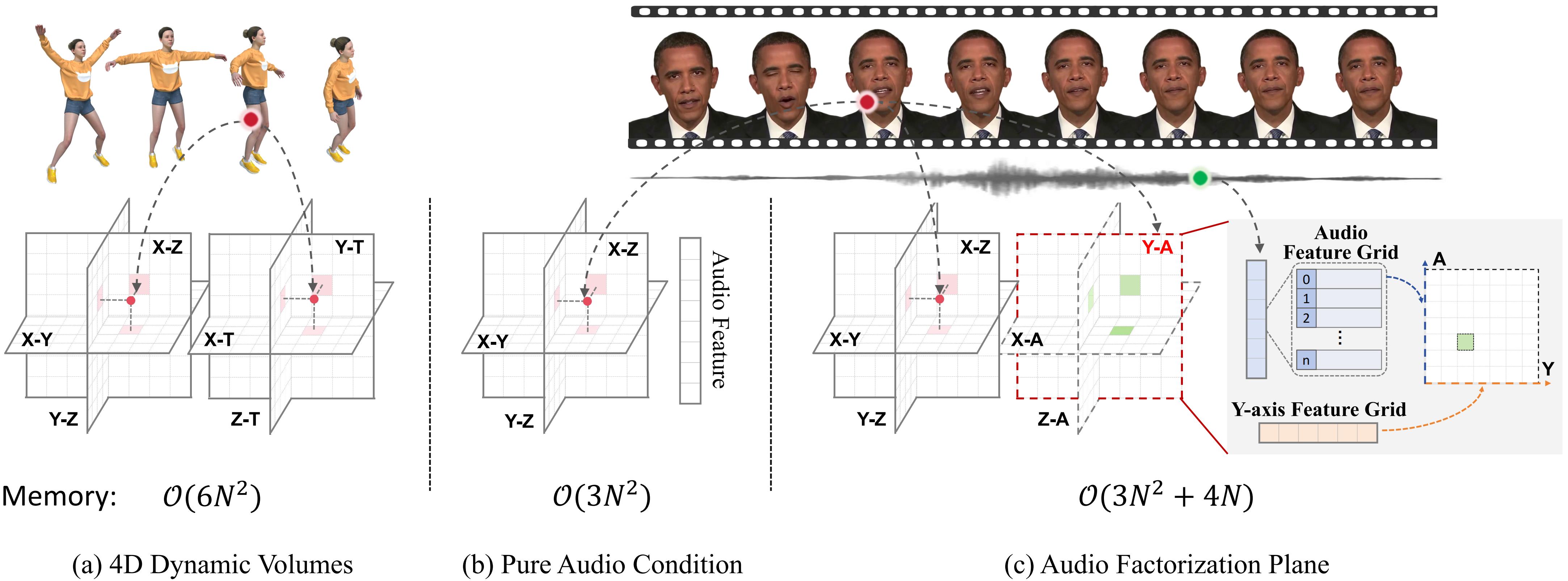

Illustration and memory usage comparison of the proposed Audio Factorization Plane and two alternative representations for dynamic scene modeling. Our method introduces a more compact and interpretable representation for audio-driven dynamics, enabling fine-grained, spatially-aware modulation conditioned on audio. This design also maintains the audio-spatial alignment in 3D space, contributing to improved synthesis fidelity.



Methods

Overview of the proposed dynamic audio-driven Gaussian splatting framework for real-time talking head video synthesis. We develop the Audio Factorized Plane to incorporate audio signals into the feature planes, to strengthen the model for temporally coherent facial motion modeling. We further develop an audio-guided saliency splatting method to explicitly supervise the dynamism of 3D Gaussian points, which helps to enhance the modeling of dynamic facial regions while reducing unnecessary complexity in less dynamic areas.

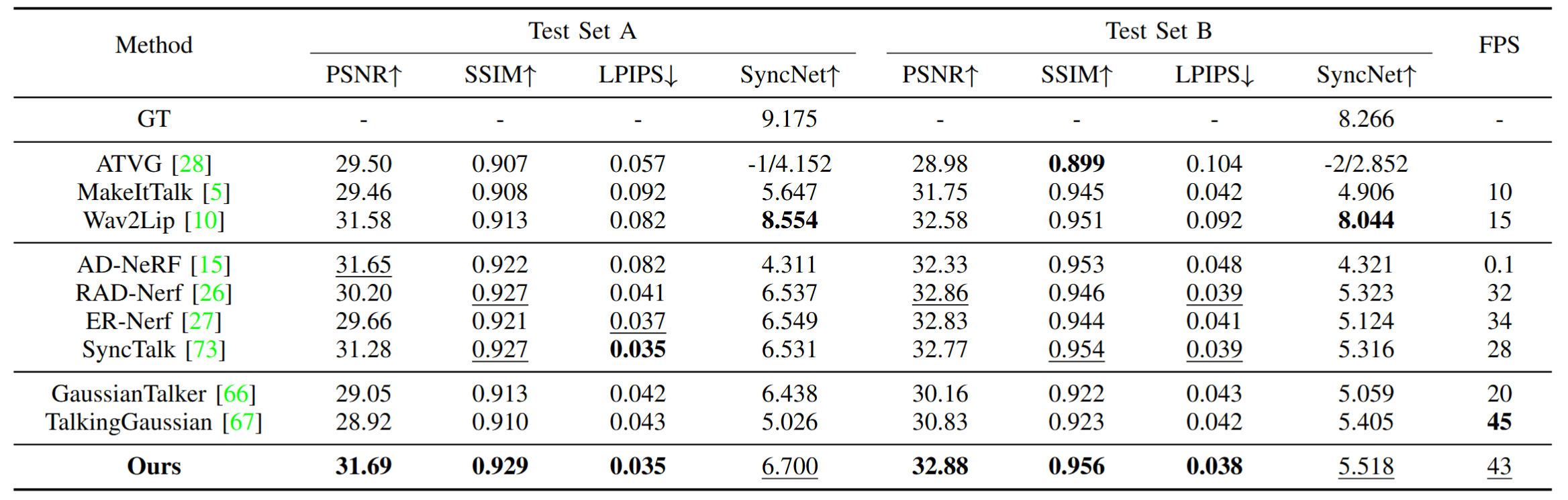

Results
